Plate Tectonics theory: Geography UPSC

• Plate tectonics is the unifying theory of the solid Earth: the rigid outer shell (lithosphere) is broken into plates that move over a weak, ductile asthenosphere, and nearly all large-scale earthquakes, volcanoes, mountain belts, trenches and ocean basins arise where these plates interact.
• It grew in the 1960s out of Alfred Wegener’s continental drift theory and Harry Hess’s seafloor spreading, and replaced the older idea of permanent continents and ocean basins.
• Unlike drift, which moved only continents, plate tectonics moves whole lithospheric slabs of continent and ocean floor together, and explains the creation of crust at ridges and its destruction at trenches.

Concept and Development of Plate Tectonics

Meaning of Plate Tectonics

• Plates are rigid slabs of lithosphere, from a few hundred to many millions of square kilometres, that move as single units and deform mainly along their margins.
• Plate tectonics is the study of the origin, nature and motion of plates, the deformation within them and the interaction of their margins.
  • A classical image: plates glide over the asthenosphere much as pack ice drifts on the Arctic Ocean under the drag of currents and winds.
• The theory is not the work of one scientist; geophysicists, seismologists and marine geologists built it together between 1960 and 1968.

Foundations and Development of the Theory

• The theory rests on two earlier concepts:
  • Continental drift: the horizontal mobility of continents (Alfred Wegener, 1912–15).
  • Seafloor spreading: creation of new ocean floor at mid-ocean ridges and its consumption at trenches (Harry Hammond Hess, 1960–62; term coined by Robert S. Dietz, 1961).
• Isostasy supplied the idea of a rigid layer floating on a yielding one, which became the lithosphere–asthenosphere pair.
• Arthur Holmes (1928–31) proposed mantle convection currents as a force able to move continents, answering the chief objection to Wegener.

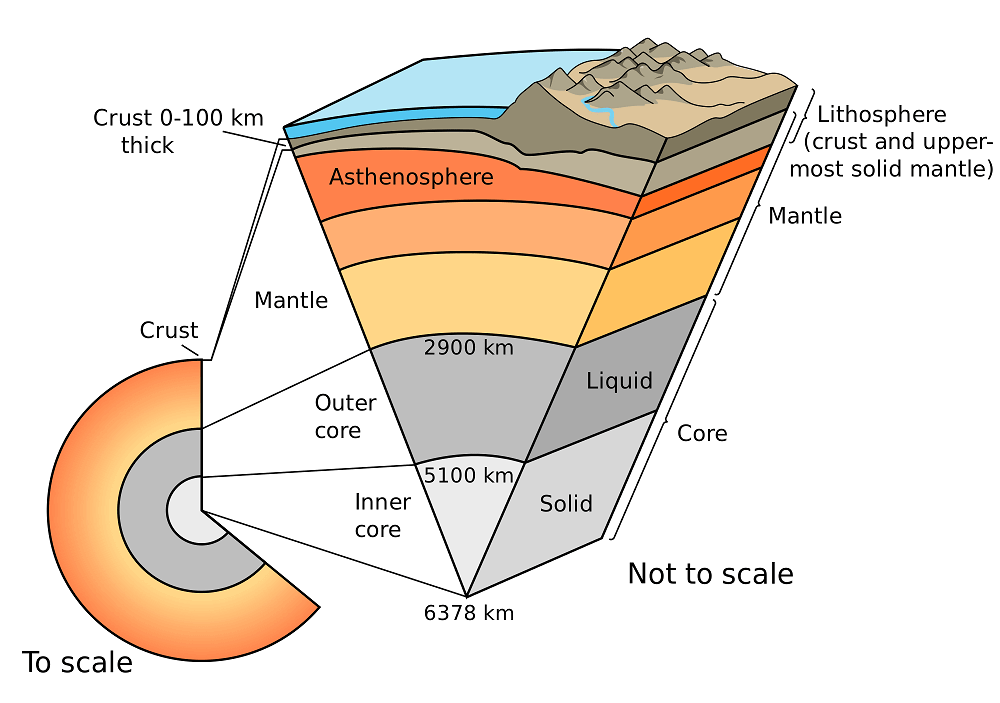

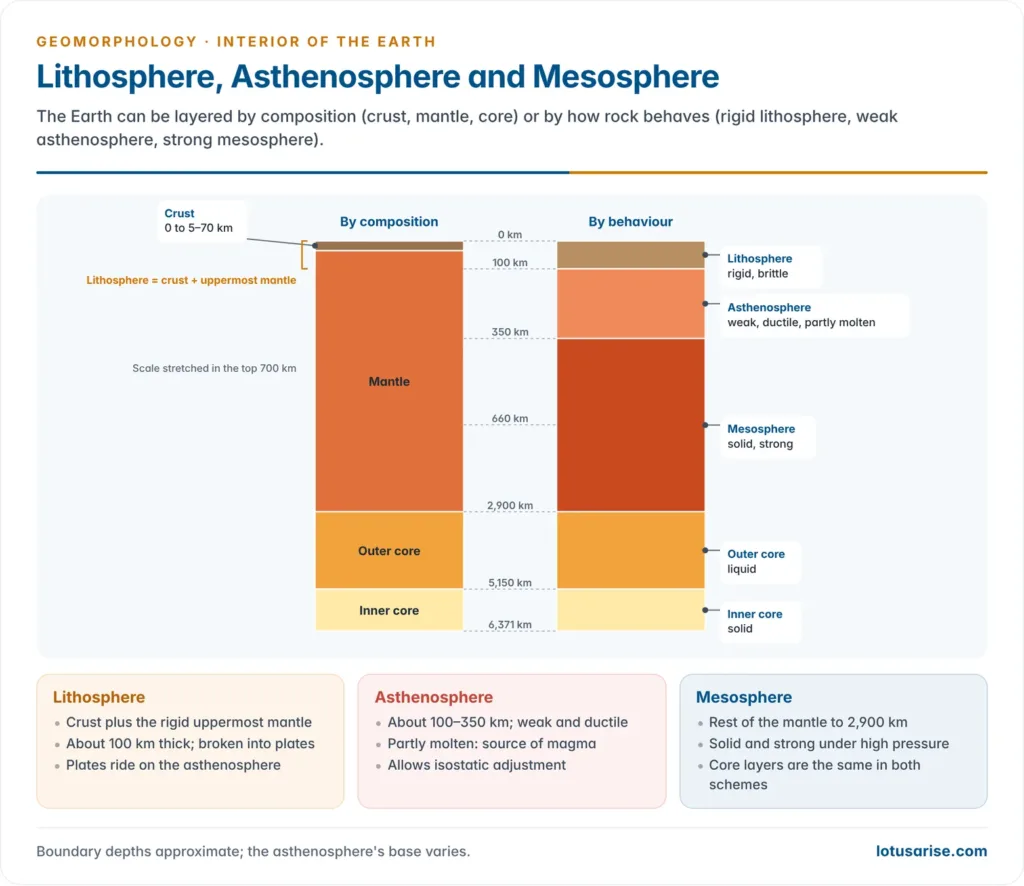

Layers by Mechanical Strength

• Plate tectonics divides the upper Earth by rigidity, not by chemistry, and so sets aside the old SIAL–SIMA scheme.
  • Lithosphere: the crust plus the uppermost mantle, rigid and brittle; about 5–100 km thick under oceans (thickening with age of the sea floor) and 100–200 km or more under continents, thickest beneath old cratons.
  • Asthenosphere: a weak, ductile layer of the upper mantle below the lithosphere (roughly 100–350 km depth), close to its melting point, over which plates move.
  • Mesosphere: the stronger lower mantle beneath.
• Oceanic plates carry thin, dense basaltic (sima-like) crust; continental plates carry thick, lighter granitic (sial-like) crust.

Basic Postulates

• The lithosphere is broken into rigid plates that move horizontally over the asthenosphere.
• Plates are created at divergent margins, consumed at convergent margins and conserved at transform margins.
• The surface area of the Earth stays constant: crust added at ridges is balanced by crust lost at subduction zones, so the Earth is not expanding.
• Plate interiors are relatively stable; seafloor spreading, volcanism, faulting, folding and mountain building are concentrated along the margins.
• Plate motion is relative: a change in speed or direction of one plate alters the motion of its neighbours.

Lithospheric Plates

Types of Plates

• Oceanic plates: carry oceanic crust only, e.g. the Pacific, Nazca and Cocos plates.
• Continental plates: mostly continental crust, e.g. the Arabian plate and much of the Eurasian plate.
• Continental–oceanic plates: carry both, e.g. the Indo-Australian, North American and African plates.

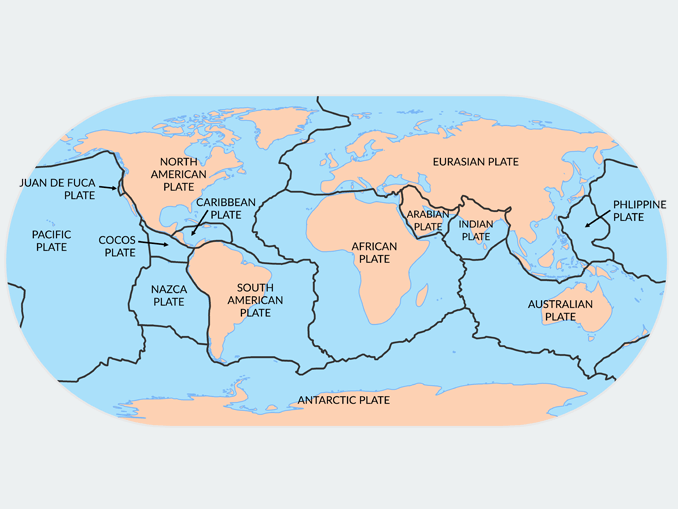

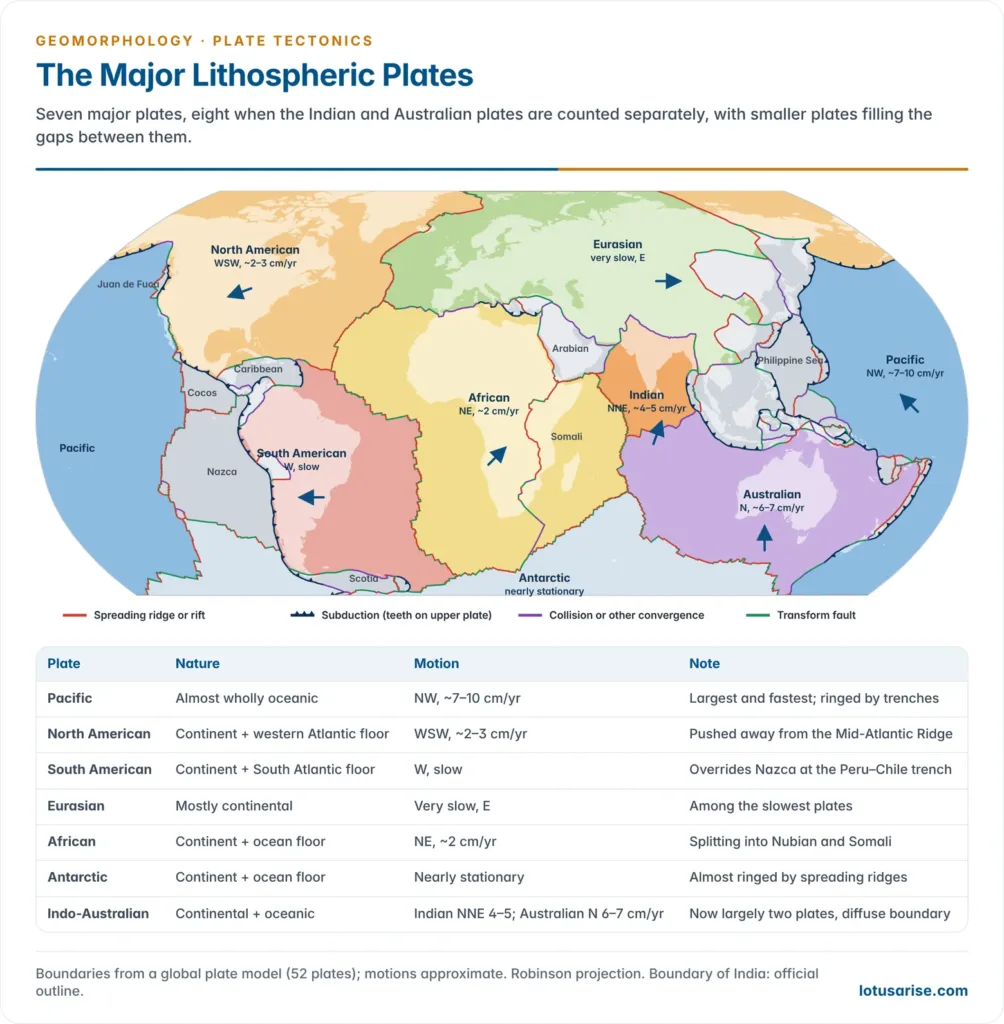

Major Plates

• Most maps show seven major plates; the count becomes eight when the Indian and Australian plates are treated separately, as modern GPS data support.
• A widely used global model by Peter Bird (2003) recognises 52 plates: 14 large and 38 small.

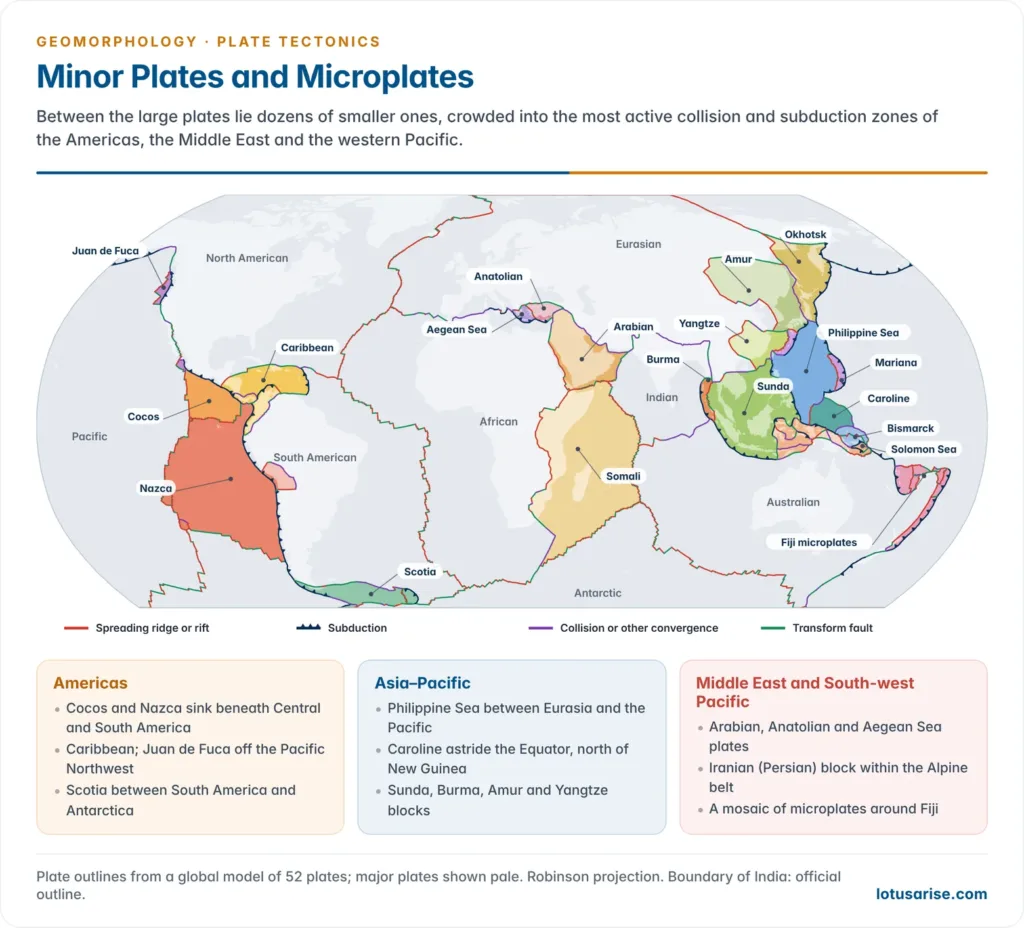

Minor Plates and Microplates

• Americas: Cocos and Nazca (subducting beneath Central and South America), Caribbean, Juan de Fuca (between the Pacific and North American plates), Scotia.
• Asia–Pacific: Philippine Sea plate (between the Eurasian and Pacific plates), Caroline plate (north of New Guinea, astride the Equator), North and South Bismarck, Sunda and Burma plates, and the Amur and Yangtze (South China) blocks.
• Middle East–Mediterranean: Arabian plate (mostly the Arabian Peninsula), Anatolian (Turkish) plate (most of Asia Minor), the Iranian (Persian) block and the Aegean Sea plate.

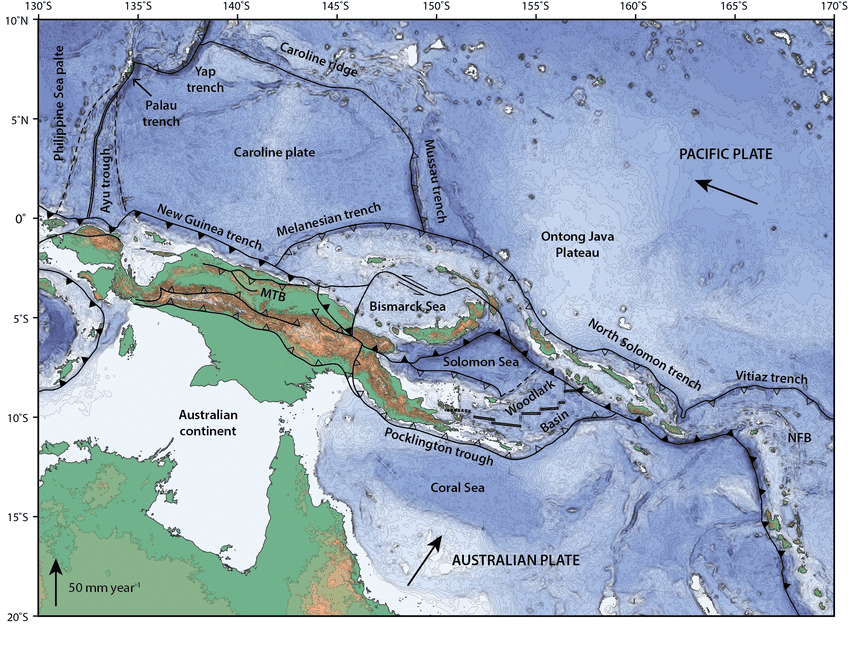

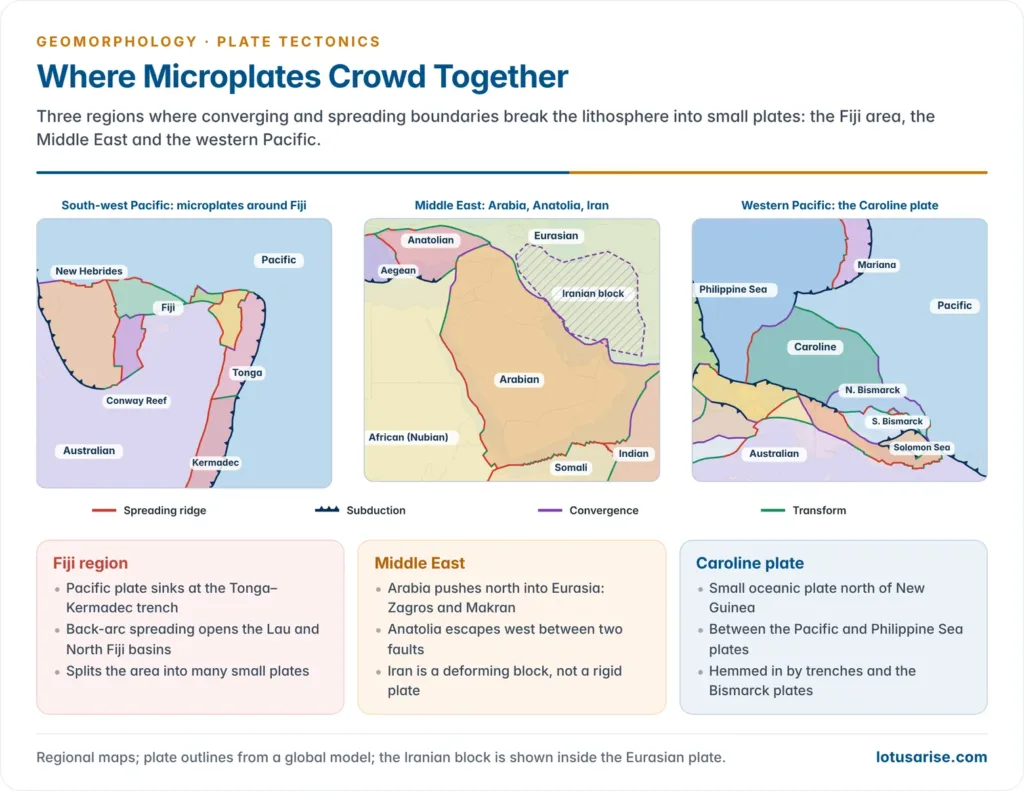

• South-west Pacific: a mosaic of microplates around Fiji between the Pacific and Indo-Australian plates.

Plate Margins

• Plate margins are the most active zones of the Earth; seismicity, vulcanicity, faulting and mountain building are concentrated there.
• A plate margin is the marginal part of a plate, while a plate boundary is the surface trace of the zone of motion between two plates.
• By the relative motion of the plates, margins are of three types:
  • Divergent (constructive, accreting): plates move apart.
  • Convergent (destructive, consuming): plates move together.
  • Transform (conservative, shear): plates slide past each other.

Divergent (Constructive) Margins

Oceanic Divergence: Mid-Ocean Ridges

• At a divergent boundary two plates move away from each other, usually along the crest of a mid-ocean ridge.
• Mechanism:
  • As plates separate, pressure on the hot upper mantle falls, causing decompression (partial) melting.
  • The magma rises into the rift and solidifies as basalt, adding new oceanic crust to the trailing edges of both plates.
  • Each new strip is magnetised in the field of its time, giving symmetrical magnetic stripes on either side of the ridge.
• Outcomes:

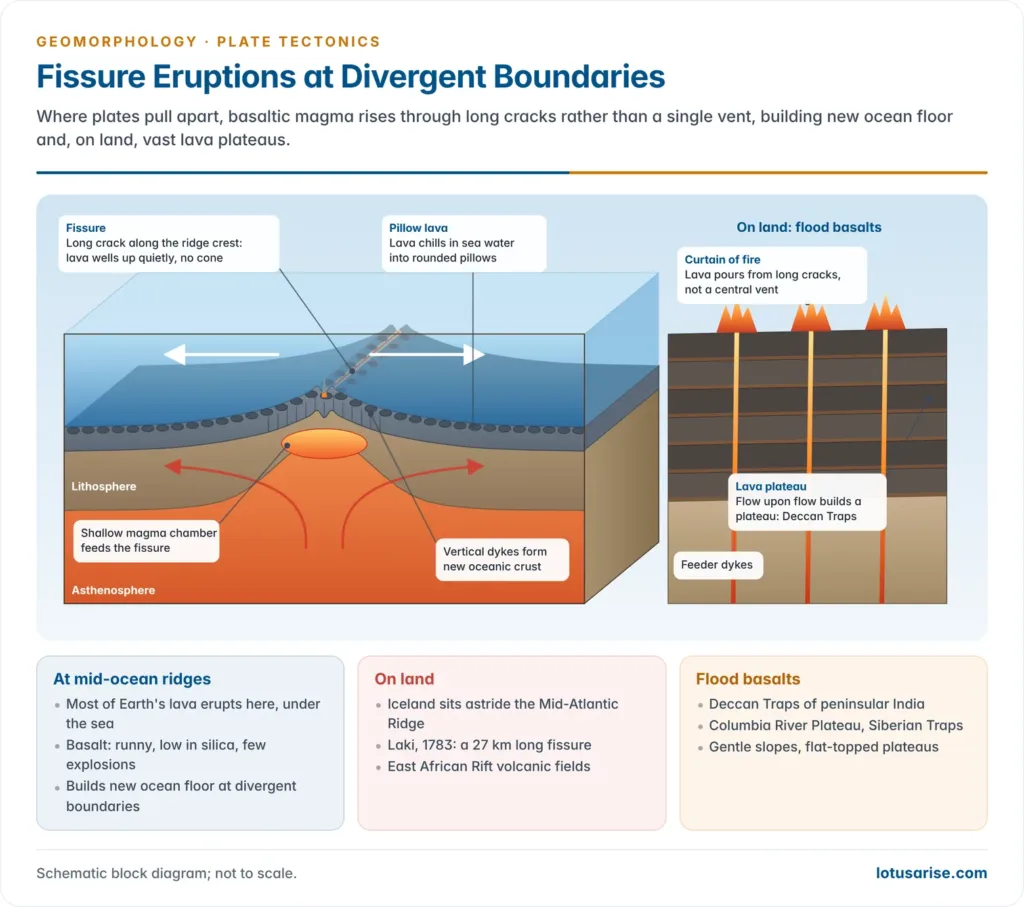

  • Fissure eruptions of low-silica tholeiitic basalt; submarine ridges and rises.
  • A central rift valley on slow ridges; transform faults that offset the ridge axis.
  • Shallow-focus earthquakes of moderate size; hydrothermal vents (black smokers).
• Examples: Mid-Atlantic Ridge, East Pacific Rise and, next to India, the Carlsberg Ridge and Central Indian Ridge, which separate the Indian plate from the Somali (African) plate.
• Iceland sits astride the Mid-Atlantic Ridge and is being pulled apart and built up by basalt; the 1973 eruption on Heimaey and the recurring Reykjanes Peninsula eruptions since 2021 show the ridge at work on land.

Continental Rifts

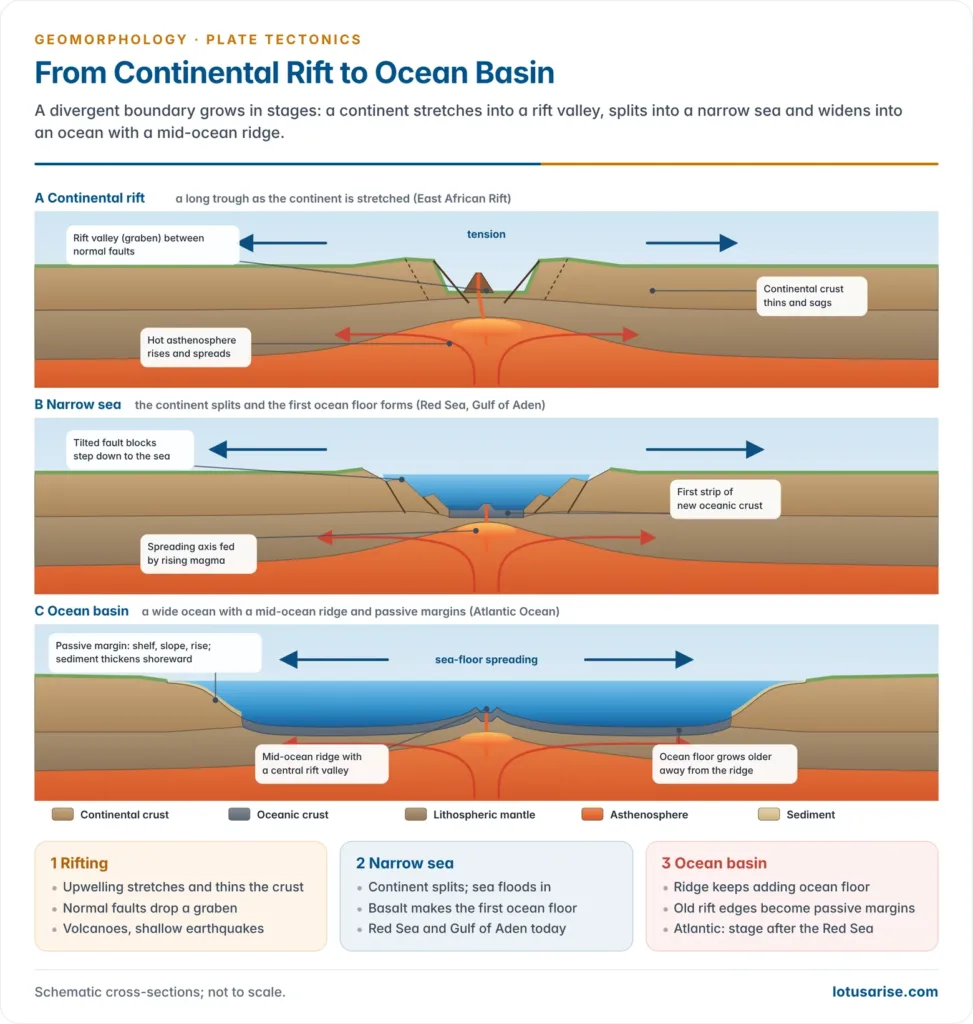

• Divergence can begin inside a continent, forming a continental rift valley bounded by normal faults.
  • East African Rift, Baikal Rift, West Antarctic Rift and Rio Grande Rift are the major active continental rifts.
• A rift that keeps widening floods to form a proto-ocean (the Red Sea) and finally a mature ocean (the Atlantic).
• Some rifts fail; India’s Narmada–Son, Cambay and Kutch grabens are old rifts that still host intraplate earthquakes (Kutch 1819, Bhuj 2001).

Convergent (Destructive) Margins

• At a convergent boundary two plates move towards each other; the denser plate usually sinks (subducts) into the mantle and part of the lithosphere is consumed.
• The inclined zone of earthquakes marking the sinking slab is the Wadati–Benioff zone, after Kiyoo Wadati and Hugo Benioff; it reaches depths of about 700 km.
• General outcomes:
  • Deep oceanic trenches, island arcs and festoons, fold mountains.
  • Explosive volcanism of andesite, dacite and rhyolite; metamorphism.
  • The world’s largest and deepest earthquakes.
• Convergence is of three types:

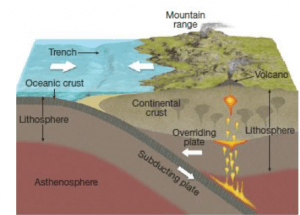

Oceanic–Continental Convergence

• The denser oceanic plate subducts beneath the lighter continental plate, forming a trench offshore.
• Water released from the sinking slab lowers the melting point of the overlying mantle wedge (flux melting); the magma rises to build a continental volcanic arc.
• Sediments and crust scraped off the slab are squeezed into fold mountains along the continental edge: the Andes and the western Cordillera of North America.
• The weight of the dense, sinking slab pulls the rest of the plate behind it; this slab pull is now regarded as the main driver of plate motion.

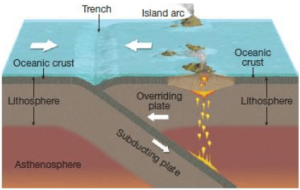

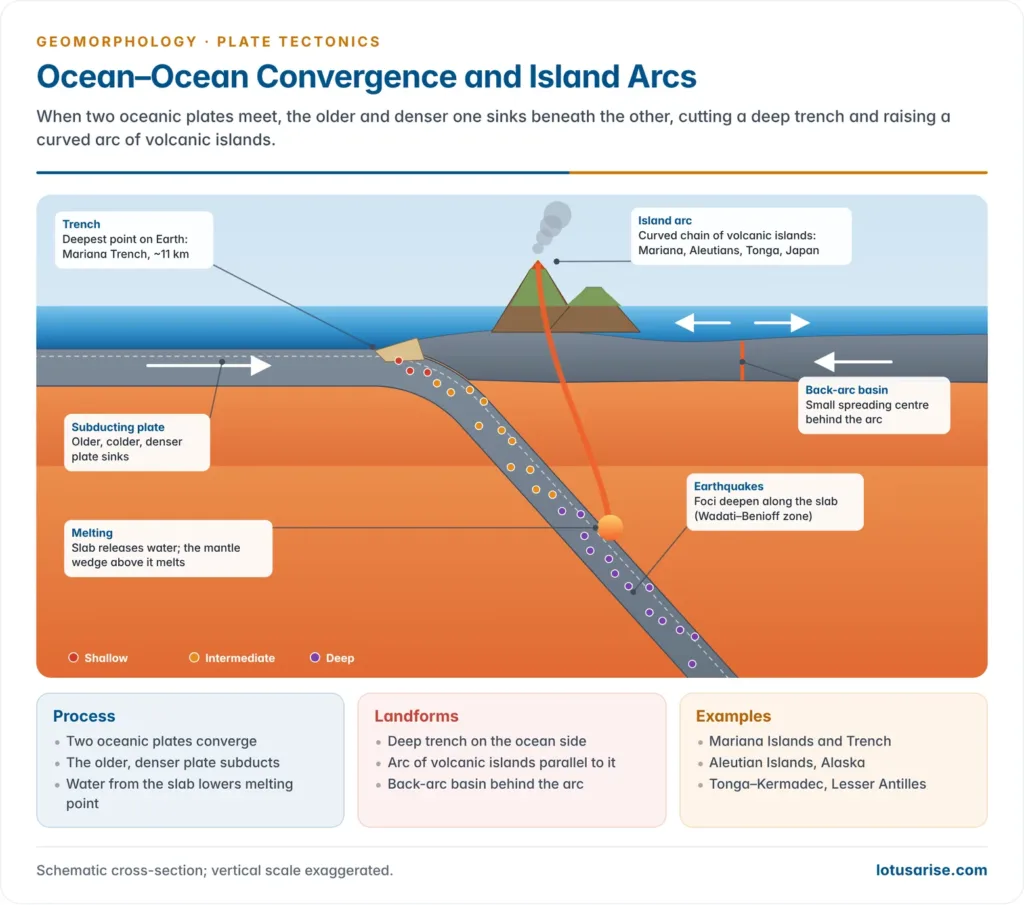

Oceanic–Oceanic Convergence

• Where two oceanic plates meet, the older, colder and denser one sinks beneath the other.
• The result is an oceanic trench paired with a curved volcanic island arc, plus shallow to deep-focus earthquakes.

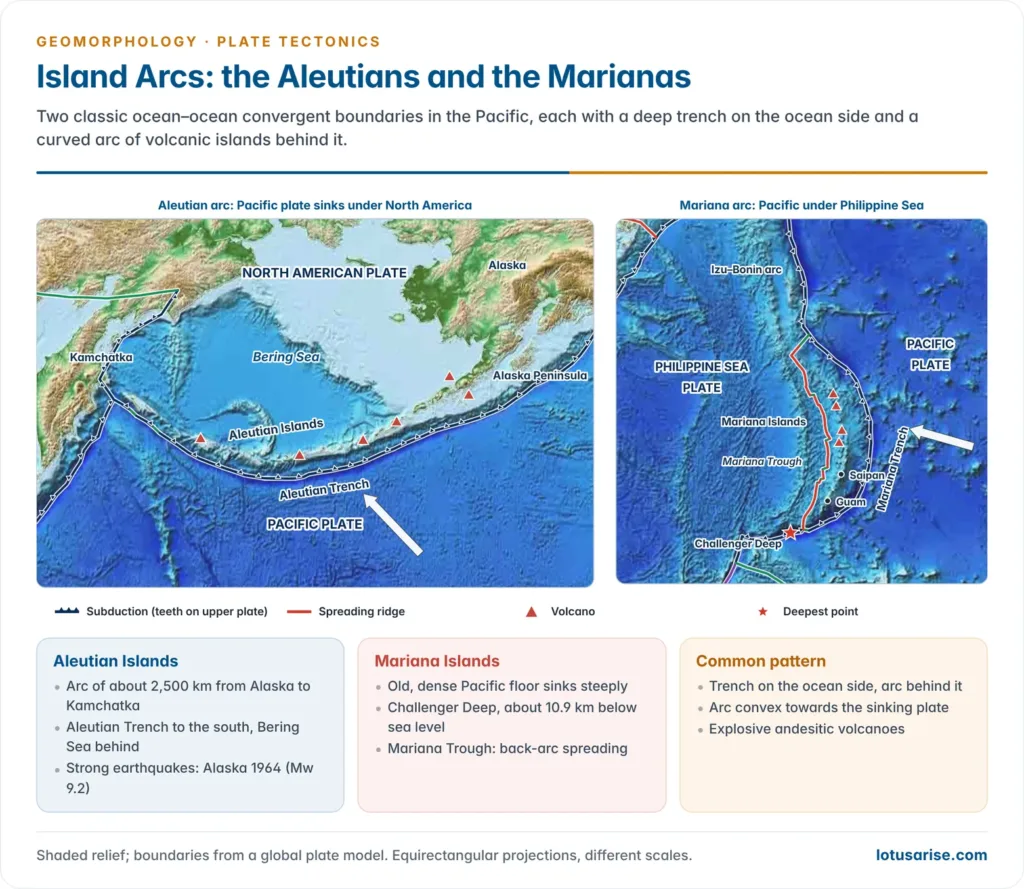

  • Young arcs: Aleutian and Mariana Islands (the Mariana Trench holds the deepest point of the oceans).
  • Mature arc systems with thicker crust: Japan, Sumatra–Java and the Philippines.
• Indian example: the Indian plate subducts beneath the Burma microplate along the Andaman–Sumatra trench; the Andaman–Nicobar arc and Barren Island, India’s only active volcano, belong to this system.

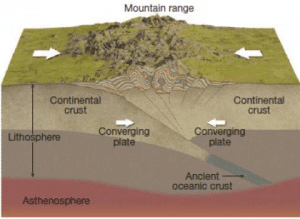

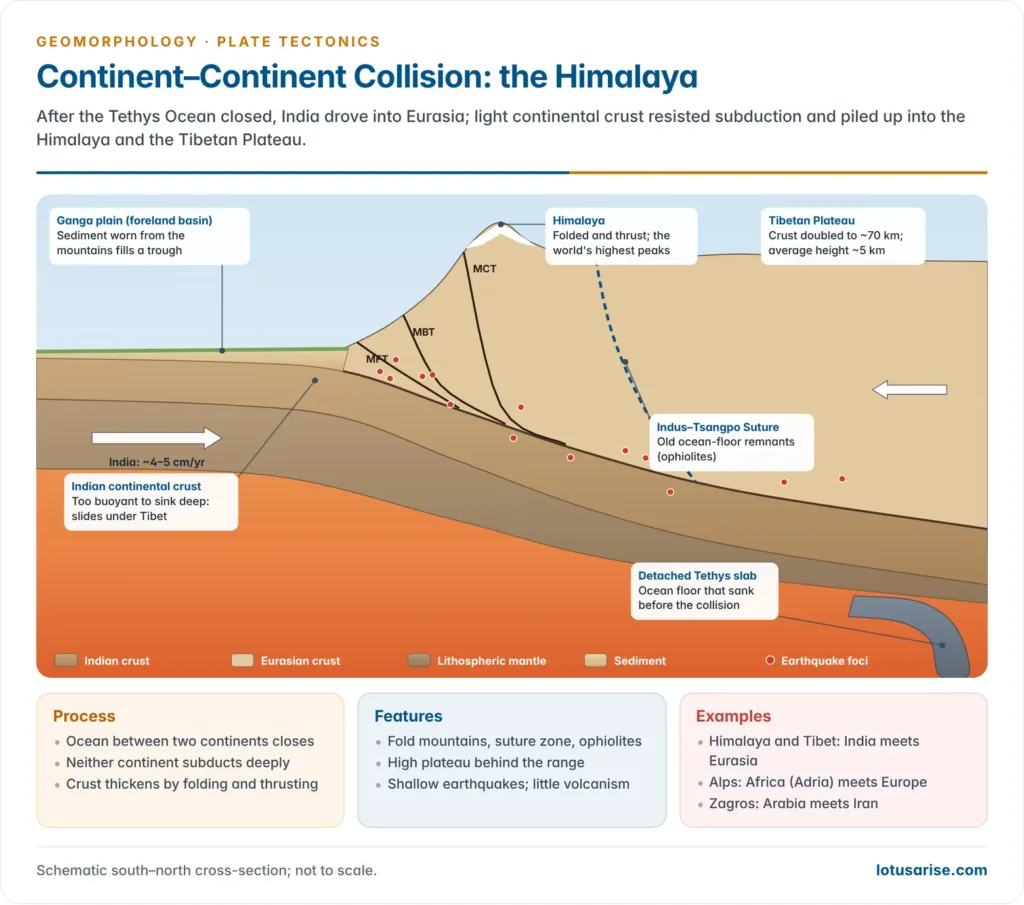

Continental–Continental Convergence

• When an ocean between two continents is fully consumed, the continents collide; continental crust is too buoyant to subduct deeply.
• The ocean-floor sediments and continental margins are crumpled, thrust and stacked into great fold-thrust mountains, and the crust thickens to form plateaus.

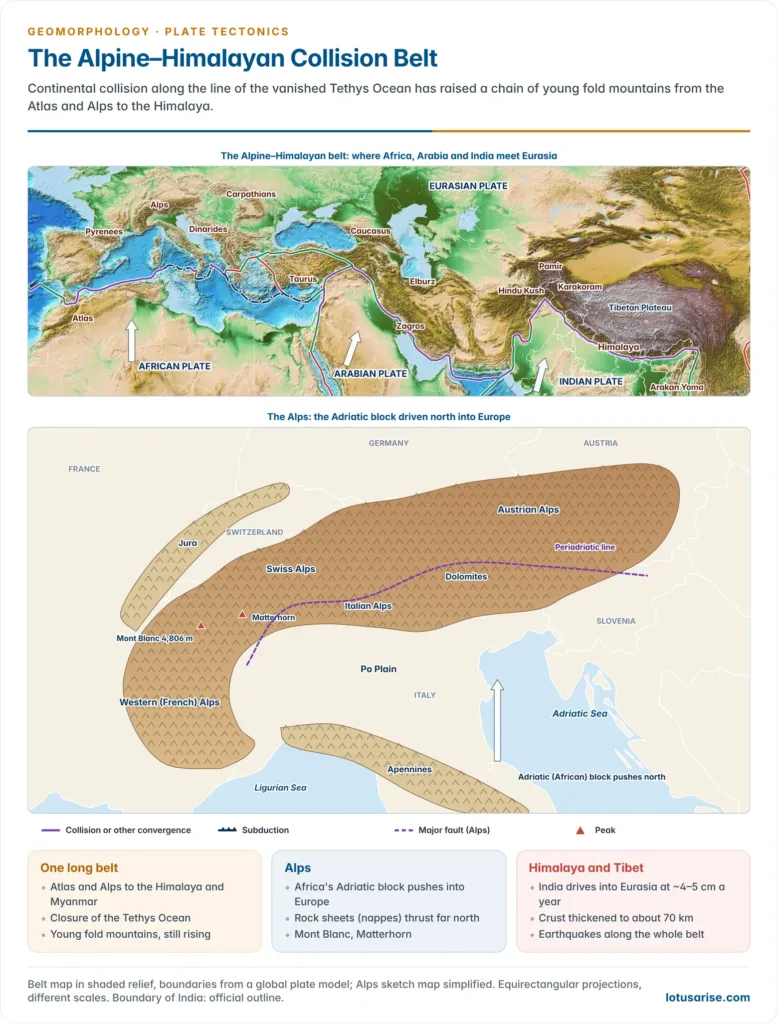

  • Himalaya and Tibetan Plateau: the Indian plate against the Eurasian plate after the closing of the Tethys.

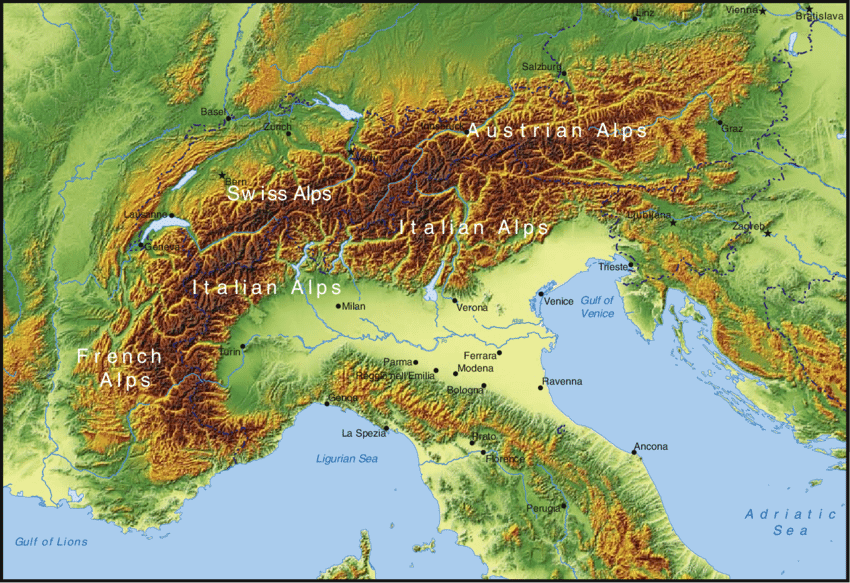

  • Alps: the African (Adriatic) plate against the Eurasian plate.
• The line where the two continents are welded is a suture zone, e.g. the Indus–Tsangpo Suture in Ladakh and southern Tibet.
• Obduction, the opposite of subduction, thrusts slices of ocean floor up onto the continent as ophiolites, e.g. Spontang (Ladakh), the Naga–Manipur hills and the Andaman islands.

Transform (Conservative) Margins

• Along a transform fault (strike-slip boundary) two plates slide horizontally past each other; lithosphere is neither created nor destroyed, only deformed.
  • The term and concept are due to J. Tuzo Wilson (1965).
• Oceanic transforms run roughly at right angles to mid-ocean ridges and offset the ridge axis; their inactive extensions are fracture zones.
• Transform faults lie parallel to the direction of relative plate motion, which is why they trace small circles about the pole of rotation.
• Features: no volcanism, shallow but often destructive earthquakes, fault troughs, shutter ridges and offset streams.
• Continental examples:

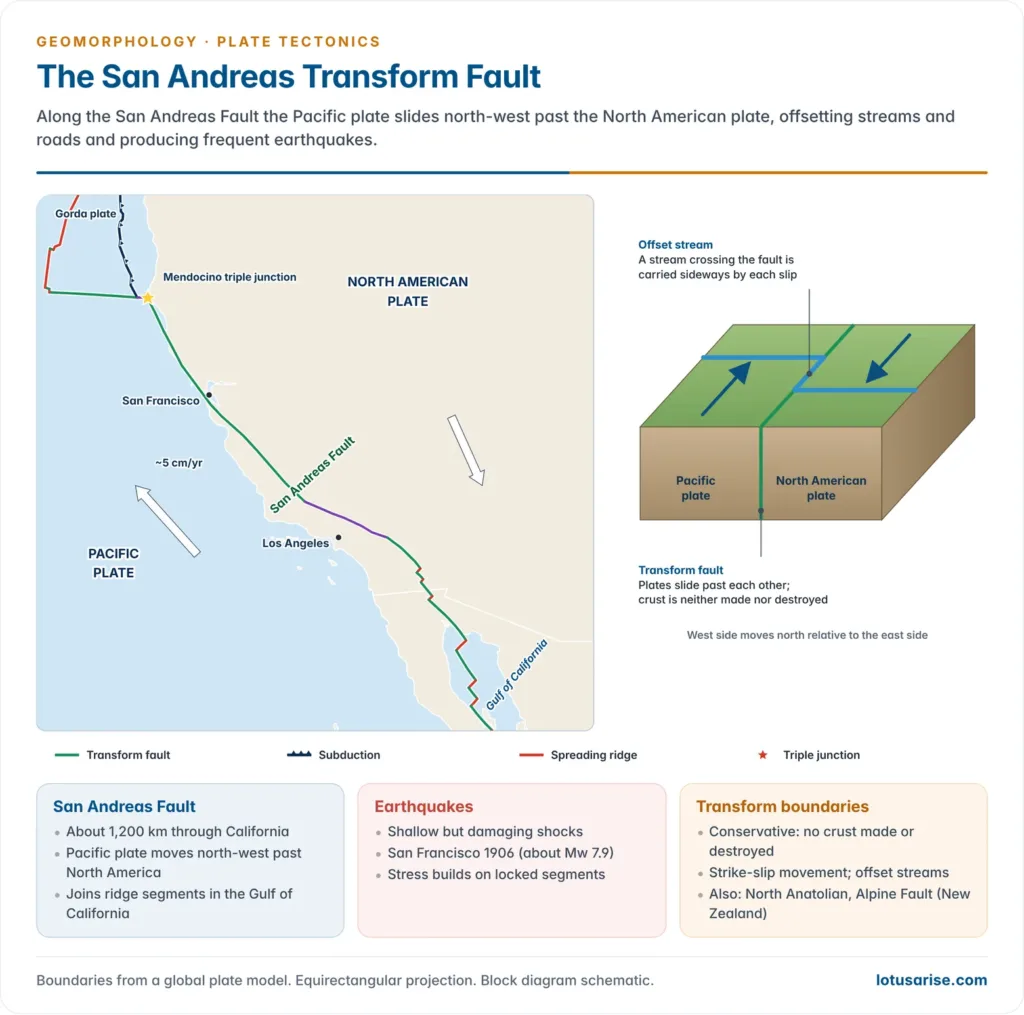

  • San Andreas Fault (California): Pacific plate against the North American plate, close to San Francisco and Silicon Valley.

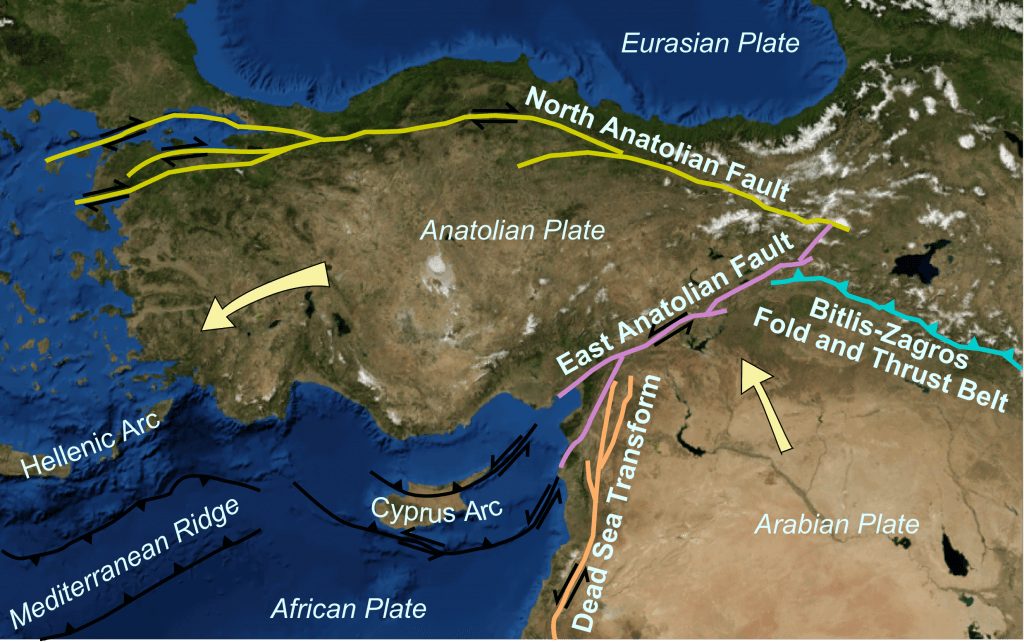

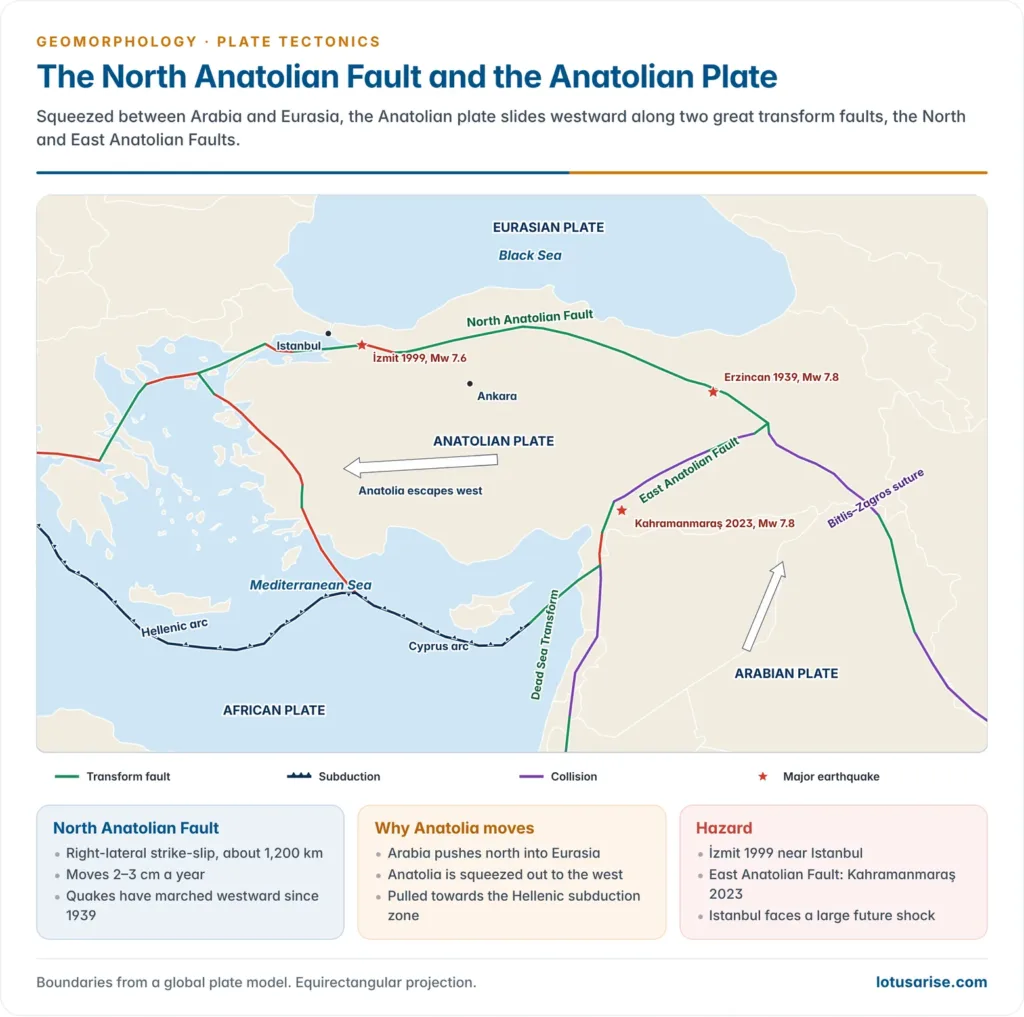

  • North Anatolian Fault (Turkey) and East Anatolian Fault, whose rupture caused the Turkey–Syria earthquake of February 2023 (M7.8).
  • Alpine Fault of New Zealand.
• Around India: the Owen Fracture Zone (India–Arabia), the Chaman Fault on the western margin and the Sagaing Fault on the eastern margin; the Sagaing Fault produced the Myanmar earthquake of 28 March 2025 (M7.7), which ruptured several hundred kilometres of the fault.

Plate Boundary Zones and Triple Junctions

• Not all boundaries are sharp lines; plate boundary zones are broad belts of deformation where the effects of plate interaction are spread out.
  • Examples: the Mediterranean–Alpine region and the Tibet–Himalaya belt.
  • The Indian and Australian plates are separating across a diffuse zone in the central Indian Ocean; the April 2012 Indian Ocean earthquakes (M8.6 and M8.2) occurred inside this zone.
• A triple junction is a point where three plates meet, e.g. the Afar junction of the Nubian, Somali and Arabian plates, and the Mendocino junction off northern California.

Plate Motion and Its Causes

Geometry of Plate Motion: Euler’s Theorem

• Leonhard Euler’s theorem states that any displacement of a rigid cap on a sphere is a rotation about an axis through the Earth’s centre. The point where this axis cuts the surface is the Euler pole (pole of rotation).
• Applied to plates by McKenzie and Parker (1967) and Morgan (1968):
  • Every point on a plate moves along a small circle about the Euler pole.
  • Transform faults must lie along these small circles; margins not parallel to them become constructive or destructive.
  • Relative velocity is zero at the pole and greatest 90° away from it, so spreading and convergence rates vary along a single boundary.
• Proof: Morgan drew great circles perpendicular to the transform faults of the equatorial Mid-Atlantic Ridge; they met at a common pole in the North Atlantic, as the rigid-plate model predicted.

Rates of Plate Motion

• Measurement: from the ages of magnetic stripes and isochrons (lines joining sea floor of equal age), and today directly by GPS, satellite laser ranging and VLBI.
• A spreading rate may be quoted as the half rate (one side of the ridge) or the full rate (both sides together); a half rate of 1 cm/yr means a full rate of 2 cm/yr.

Driving Forces

Classical View: Mantle Convection

• Arthur Holmes proposed that thermal convection currents in the mantle carry plates like a conveyor belt.
  • Rising limbs lie below mid-ocean ridges and diverge beneath the lithosphere, dragging plates apart.
  • Descending limbs converge beneath trenches and pull plate margins down.
• Lord Rayleigh‘s physics of convection in fluids, and later work on temperature-dependent mantle viscosity, made this plausible.
• Two other classical ideas: gravity sliding of plates off the elevated ridge, and wedging of plates apart by magma intruded at the ridge.
• The lack of an agreed driving force was long considered the weakest point of the theory.

Current View: Slab Pull Dominates

• Plates are now seen as the cold upper boundary layer of mantle convection itself, driven mainly by gravity acting on density differences.
• Donald Forsyth and Seiya Uyeda (1975) compared plate speeds with plate-boundary types and found slab pull to be the strongest force:
  • Plates attached to long subducting slabs (Pacific, Nazca, Cocos, Indian, Australian) move fastest; plates without them (Eurasian, African, Antarctic) move slowly.

• Energy source: Earth’s internal heat from radioactive decay and primordial heat; the forces that move plates are gravitational.

Plate Tectonics and Geological Phenomena

Plate Tectonics and Continental Drift

• Palaeomagnetism and seafloor spreading prove that continents and ocean basins have never been stationary; plate tectonics turned continental drift into an established fact, while rejecting Wegener’s mechanism.
• Oceans open and close:
  • The Atlantic has been widening for about 180–200 million years; the Pacific is shrinking as the Americas move west over it.
  • The Mediterranean is a remnant of the vast Tethys Ocean.
  • The Red Sea has recently begun to open.
• The sea floor is nowhere older than about 180–200 million years, because older ocean floor has been recycled at subduction zones.

The Wilson Cycle

• J. Tuzo Wilson (1966) noticed that the Atlantic had closed and then reopened, and proposed a cycle of ocean opening and closing.

• The Appalachians of North America and the Caledonian–Hercynian belts of Europe record the closure of an older Atlantic (Iapetus Ocean) in the Palaeozoic; the present Atlantic reopened about 180 million years ago.

Supercontinents

• Continents repeatedly assemble into supercontinents and break apart, the supercontinent cycle.
  • Rodinia: assembled about 1.1 billion years ago, broke up about 750 million years ago.
  • Pangaea: assembled about 335 million years ago, broke up from the early Jurassic (about 200–175 million years ago).
• Break-up of Pangaea:
  • North-west Africa separated from North America first, opening the central Atlantic.
  • South America and Africa separated in the Cretaceous, opening the South Atlantic.
  • Greenland and Europe split from North America later, opening the Labrador Sea and North Atlantic in the late Cretaceous and early Tertiary.
• Projections suggest East Africa will split off, Australia will move towards Southeast Asia and the Mediterranean will close over the next tens of millions of years.
• Pangaea I and II: James Valentine and Eldridge Moores (1970), probably the first to recognise a Precambrian supercontinent, called it Pangaea I and Wegener’s supercontinent Pangaea II; Pangaea I was renamed Rodinia by Mark and Dianna McMenamin (1990).
• Opening of the Indian Ocean: the Indian Ocean began to open only with the break-up of Gondwana in the Jurassic and widened mainly in the Cretaceous; from its magnetic anomalies Dan McKenzie and John Sclater (1971) reconstructed its growth.
  • Rapid northward spreading behind India in the early Tertiary gave way to a lull in the Eocene, while Australia pulled away from Antarctica; the present spreading pattern dates from about 36 million years ago.
  • Deep water through the Tasmanian gateway opened about 34 million years ago, isolating Antarctica.

Red Sea, Gulf of Aden and Gulf of California

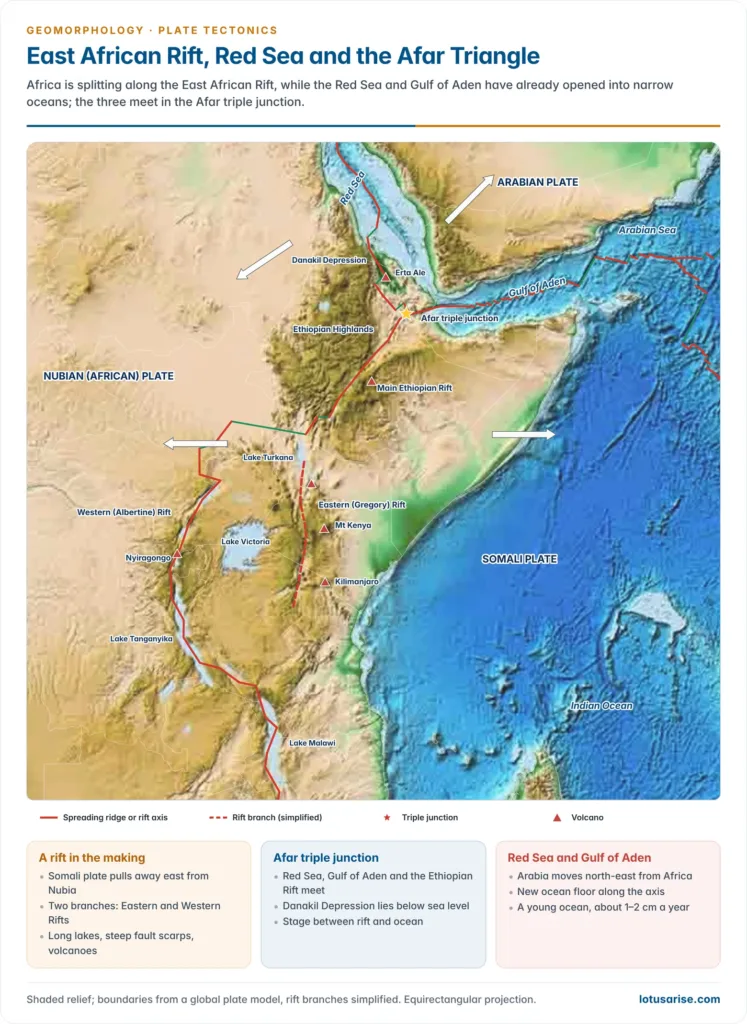

• Red Sea and Gulf of Aden:
  • An axial trough between Africa and Arabia with magnetic stripes like those of the oceans, spreading at about 1–2 cm/yr.
  • They meet at the Afar triple junction of the Nubian, Somali and Arabian plates; Arabia is rotating away from Africa about its own Euler pole.
• Gulf of California:
  • The East Pacific Rise enters the gulf; stripes show spreading for about the last 4–6 million years.
  • The spreading has torn Baja California from mainland Mexico and carried it north-west with the Pacific plate.

Movement of the Indian Plate

• Break-up: India separated from Gondwana (Africa–Madagascar–Antarctica–Australia) in the Cretaceous, and the Indian Ocean opened behind it.
• Rapid drift: the Indian plate raced north across the Tethys at about 15–18 cm/yr in the late Cretaceous–early Tertiary, among the fastest plate speeds known.
  • Passing over the Réunion hotspot about 66 million years ago, it received the Deccan Traps; the hotspot’s track is the Chagos–Laccadive Ridge (Lakshadweep, Maldives).
  • The older Rajmahal Traps are linked to the Kerguelen hotspot.
• Collision: India met Eurasia about 50 million years ago; its speed dropped sharply, and the Himalaya and Tibetan Plateau began to rise.
• Present motion:
  • GPS shows India moving north-north-east at about 4–5 cm/yr; convergence across the Himalayan arc is about 3.5 cm/yr in the west to 5 cm/yr in the east.
  • Roughly 2 cm/yr is absorbed across the Himalaya on the Main Himalayan Thrust; the rest is taken up in Tibet and beyond, with east–west extension of Tibet along north–south rifts. The Dingri (Tingri) earthquake of January 2025 (M7.1) in southern Tibet was on such a normal fault.
  • This continuing push keeps the Himalaya rising and makes the arc one of the most seismic belts on land.
• Recent research:
  • Seismic imaging and helium-isotope data suggest the Indian plate beneath Tibet is tearing and partly delaminating (a 2025 study).
  • The Indian and Australian plates are now resolved as largely separate plates.

Plate Tectonics and Mountain Building

• Earlier hypotheses failed to give a convincing mechanism for fold mountains:
  • Harold Jeffreys: thermal contraction of the Earth.
  • Frank Bursley Taylor and Alfred Wegener: continental drift.
  • Arthur Holmes: convection currents.
  • Reginald Aldworth Daly: sliding continents.
  • John Joly: radioactive heat cycles.
• Plate tectonics links each mountain type to a type of convergence:
  • Cordilleran (Andean) type at ocean–continent margins.
  • Island arcs at ocean–ocean margins.
  • Collision (Himalayan–Alpine) type at continent–continent margins.
• Old fold belts (Appalachians, Caledonides, Aravallis) are eroded roots of earlier collisions.
• The geosynclines of classical theory are reinterpreted as sediment wedges on continental margins and in trenches.
• Granite batholiths form when continental rocks are carried to depth in collision belts and melt; the light, silica-rich magma rises and further uplifts the range.
  • The granite-gneiss batholiths around Ranchi on the Chotanagpur plateau are read as roots of Precambrian mountain belts.

Plate Tectonics and Vulcanicity

• Most active volcanoes lie on plate boundaries:
  • Roughly four-fifths at convergent boundaries.
  • About 15% at divergent boundaries.
  • The remainder within plates, over hotspots.
• Belts: the Circum-Pacific belt (Ring of Fire), the Mid-Atlantic belt and the Mid-continental (Alpine–Himalayan) belt.

• Ridge volcanism:
  • Lava is youngest at the ridge and older away from it, both on the sea floor and on islands such as Iceland.
  • Volcanic islands formed at a ridge are carried away from their magma source, go extinct and subside into seamounts and flat-topped guyots.
• Subduction magmas:
  • Classically, the andesite–dacite–rhyolite suite was traced to partial melting of the subducted amphibolite and eclogite (Alfred Edward Ringwood, 1974) or to melting of oceanic basalt mixed with ocean-floor sediments (James Gilluly).
  • The current view stresses water released from the slab triggering melting of the mantle wedge above it.
• Hotspots:
  • A stationary mantle plume beneath a moving plate leaves an age-progressive chain. The Hawaiian–Emperor chain ages north-westward, with a bend about 47 million years old, as the Pacific plate moves north-west over the plume.
  • The hotspot idea was proposed by J. Tuzo Wilson (1963) and the plume model by W. Jason Morgan (1971).
• Flood basalt plateaus mark plumes that coincided with continental break-up:
  • Deccan (India over Réunion).
  • Paraná of Brazil (opening of the South Atlantic).
  • Columbia River plateau of the USA (Yellowstone hotspot).

Plate Tectonics and Earthquakes

• Earthquake belts coincide with plate boundaries; about 81% of the largest earthquakes occur in the Circum-Pacific belt and about 17% in the Alpine–Himalayan belt.
• Divergent margins: shallow-focus, moderate earthquakes from rifting and magma movement, mostly shallower than about 30 km (Mid-Atlantic Ridge, Carlsberg Ridge, East Pacific Rise).
• Convergent margins: the strongest and deepest earthquakes, with foci down to about 700 km along the Wadati–Benioff zone.
  • Megathrust earthquakes: Chile 1960 (M9.5), Sumatra–Andaman 2004 (M9.1), Japan 2011 (M9.0–9.1) and Kamchatka, July 2025 (M8.8).
  • Collision earthquakes: Nepal (Gorkha) 2015 (M7.8) in the Himalaya.
• Transform margins: shallow but severe earthquakes (San Andreas, Turkey 2023, Myanmar 2025).
• Intraplate earthquakes occur on old faults inside plates under stress transmitted from the margins: Kutch 1819 (which raised the Allah Bund), Latur 1993, Bhuj 2001.
• Megathrust earthquakes that lift the sea floor generate tsunamis; the 2004 tsunami followed the slip of the Indian plate beneath the Burma microplate.

Evidences for Plate Tectonics

• Palaeomagnetism and magnetic reversals:
  • Rocks lock in the Earth’s field as they cool below the Curie point (about 580 °C for magnetite).
  • Symmetrical, reversed stripes on either side of ridges record spreading; apparent polar wander paths differ between continents but match once the continents are refitted.
• Age of the ocean floor: deep-sea drilling from the Glomar Challenger (from 1968) under JOIDES and its successor programmes found sediments youngest and thinnest at ridges, older and thicker towards the margins, and no ocean floor older than about 200 million years.
• Distribution of earthquakes and volcanoes along narrow belts, and inclined Wadati–Benioff zones under trenches.
• Hotspot chains that age in the direction of plate motion.
• Heat flow that is high at ridges and low at trenches; gravity anomalies over trenches.
• Direct measurement: GPS and other space geodesy now measure plate motion in real time, matching rates derived from magnetic stripes.

Significance of Plate Tectonics

• Landforms: almost all first-order relief (ocean basins, ridges, trenches, fold mountains, rift valleys, island arcs) owes its origin to plate movement.
• Hazards: explains the location of earthquakes, volcanoes and tsunamis, guiding seismic zoning and early-warning systems.
• Minerals and energy:
  • Magma from the mantle and hydrothermal circulation concentrate ores. Porphyry copper deposits cluster along subduction belts (Andes of Chile and Peru); massive sulphides form at ridges.
  • Geothermal energy is concentrated at boundaries (Iceland, New Zealand), and petroleum basins lie on rifted margins and in foreland basins.
• Other sciences: explains the distribution of fossils, past climates and biogeography, and the long-term carbon cycle.
• Future geography: from present plate motions, the shape of continents can be projected.

Continental Drift, Seafloor Spreading and Plate Tectonics Compared

Critical Evaluation

• Strengths:
  • The theory unifies drift, spreading, seismicity, vulcanicity and mountain building in one framework.
  • It predicts measurable motions that GPS confirms, and it is the accepted paradigm of the Earth sciences.
• Limitations and live debates:
  • Driving forces: the relative weight of slab pull, ridge push and mantle flow is still debated, though slab pull is widely held dominant.
  • Rigid-plate assumption: continents deform over wide zones (Tibet, the Basin and Range), and India and Australia are separating along a diffuse boundary.
  • Intraplate activity: hotspots and interior earthquakes (Latur, Bhuj) need additional explanations (plumes, reactivated old faults).
  • Subduction initiation, how a new trench forms, is poorly understood.
  • Onset: whether modern-style plate tectonics began over 3 billion years ago or much later in the Proterozoic is an open question.
• Current view: plate tectonics is the surface expression of mantle convection in which the plates themselves, through slab pull, are the most active part.
