Hey DostoIn this article of Geomorphology you will read about seismic waves and earth’s interior. Before reading this article, you have to read Lecture-5 and Lecture-6 for better understanding.

So, Let’s dive into the topic.

As we have discussed in our previous articles the Study of seismic waves provides a complete picture of the layered interior.

An earthquake in simple words is shaking of the earth. It caused due to the release of energy, which generates waves that travel in all directions.

Now, first of all, You should understand Why does the earth shake?

  • The release of energy occurs along a fault.
  • A fault is a sharp break in the crustal rock layer.
  • Rocks along a fault tend to move in opposite directions. But the friction exerted by the overlying rock strata prevents the movement of the rock layer, with time pressure builds up.
  • Under intense pressure, the rock layer, at a certain point, overcomes the friction offered by the overlying layer and undergoes an abrupt movement generating shockwaves.
  • This causes a release of energy, and the energy waves travel in all directions.
  • The point where the energy is released is called the s focus of an earthquake, alternatively, it is called the hypocentre.
  • The energy waves traveling in different directions reach the surface. The point on the surface, nearest to the focus, is called epicentre. It is the first one to experience the waves. It is a point directly above the focus.

Earthquake Waves

Now, you will tell me in the comment section, which waves are useful to understand the study of the earth’s interior?

  1. Body waves
  1. Surface waves

All-natural earthquakes take place in the lithosphere (depth up to 200 km from the surface of the earth).

An instrument called ‘seismograph’ records the waves reaching the surface.

Earthquake waves are basically of two types – body waves and surface waves.

Body waves are generated due to the release of energy at the focus and move in all directions traveling through the body of the earth. Hence, the name body waves.

The body waves interact with the surface rocks and generate a new set of waves called surface waves. These waves move along the surface.

The velocity of waves changes as they travel through materials with different elasticity (stiffness) (Generally density with few exceptions)The more elastic the material is, the higher is the velocity. Their direction also changes as they reflect or refract when coming across materials with different densities.

There are two types of body waves. They are called P and S-waves.

The behavior of Earthquake Waves

The earthquake waves are measured with the help of a seismograph and are of three types—

The ‘P’ waves or primary waves (longitudinal nature)

Secondary waves or ‘S’ waves (transverse in nature)

Surface waves or ‘L’ waves are long.

The n velocity and direction of the earthquake waves undergo changes when the medium through which they are traveling changes.

When an earthquake or underground nuclear test sends shock waves through the Earth, the cooler areas, which generally are rigid, transmit these waves at a higher velocity than the hotter areas.

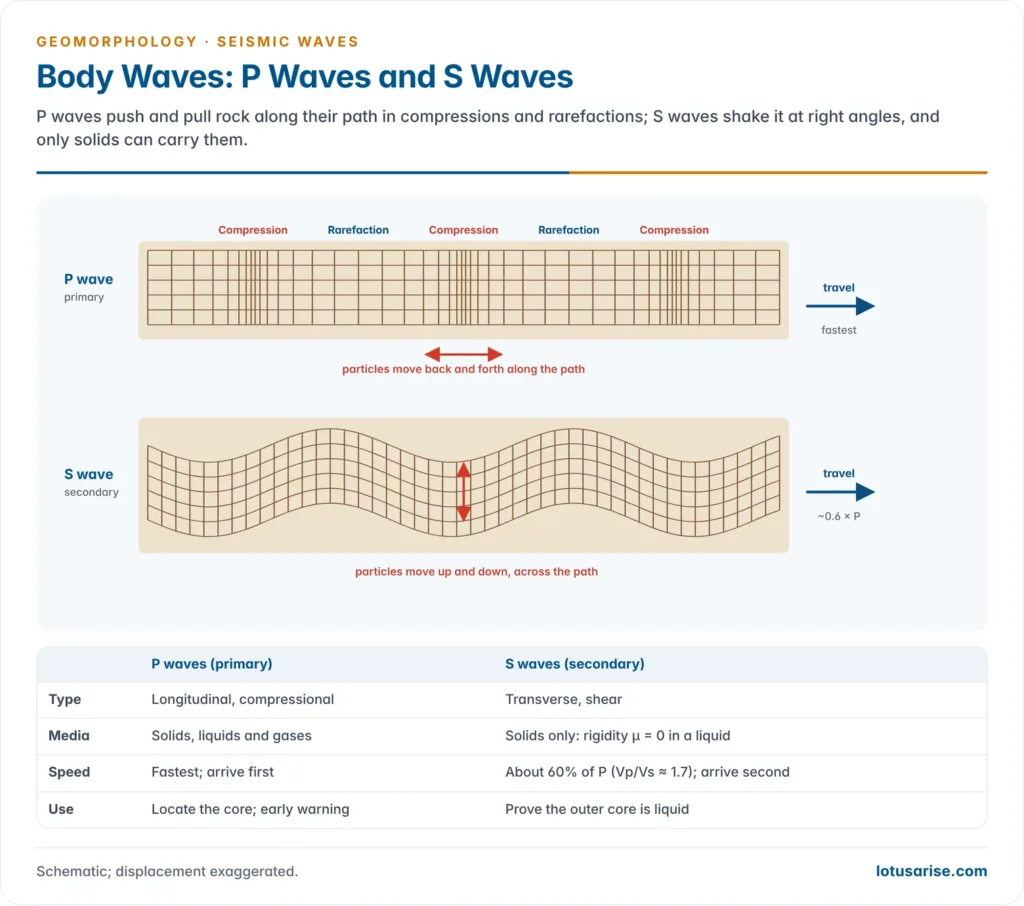

Primary Waves (P waves)

  • Also called the longitudinal or compressional waves.
  • Particles of the medium vibrate along the direction of propagation of the wave.
  • P-waves move faster and are the first to arrive at the surface.
  • These waves are of high frequency.
  • They can travel in all mediums.
  • The velocity of P waves in Solids > Liquids > Gases
  • Their velocity depends on y shear strength or elasticity of the material.
  • The shadow zone for ‘P’ waves is an area that corresponds to an angle between 103° and 142°.
  • This gives clues about the Solid inner core.

Secondary Waves (S waves)

  • Also called as transverse or distortion waves.
  • Analogous to water ripples or light waves.
  • S-waves arrive at the surface with some time lag.
  • A secondary wave cannot pass through liquids or gases.
  • These waves are of high-frequency waves.
  • Travel at varying velocities (proportional to shear strength) through the solid part of the Earth’s crust, mantle.
  • The shadow zone of ‘S’ waves extends y almost halfway around the globe from the earthquake’s focus.
  • The shadow zone for ‘S’ waves is an area that corresponds to an angle between 103° and 103°.
  • This observation led to the discovery of the liquid outer core. Since S waves cannot travel through liquid, they do not pass through the liquid outer core.

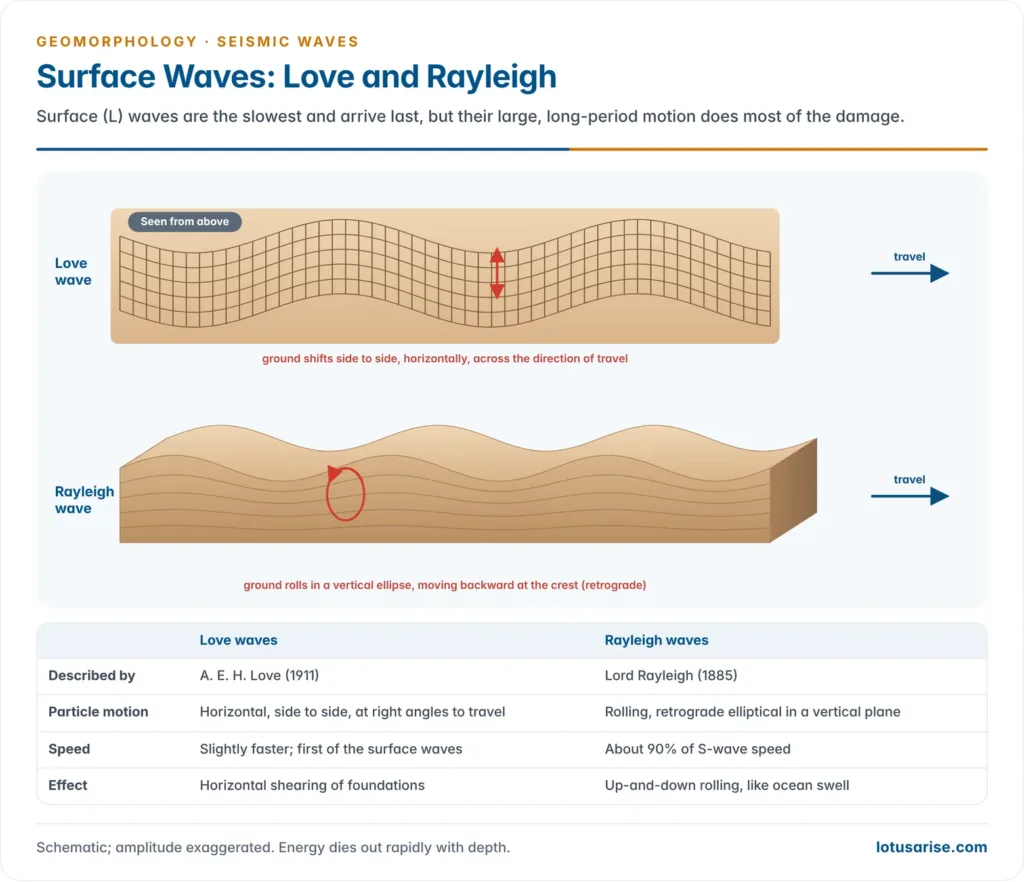

Surface Waves (L waves)

  • Also called long-period waves.
  • They are low frequency, long wavelength, and transverse vibration.
  • Generally, they affect the surface of the Earth only and die out at a smaller depth.
  • Develop in the immediate neighborhood of the epicenter.
  • They cause displacement of rocks, and hence, the collapse of structures occurs.
  • These waves are responsible for most of the destructive force of the earthquake.
  • Recorded last on the seismograph.

Propagation of Earthquake Waves

Different types of earthquake waves travel in different manners. As they move or propagate, they cause vibration in the body of the rocks through which they pass.

P-waves vibrate parallel to the direction of the wave. This exerts pressure on the material in the direction of the propagation.

As a result, it creates density differences in the material leading to stretching and squeezing of the material.

The other two waves vibrate perpendicular to the direction of propagation.

The direction of vibrations of S-waves is perpendicular to the wave direction in the vertical plane. Hence, they create s troughs and crests in the material through which they pass.

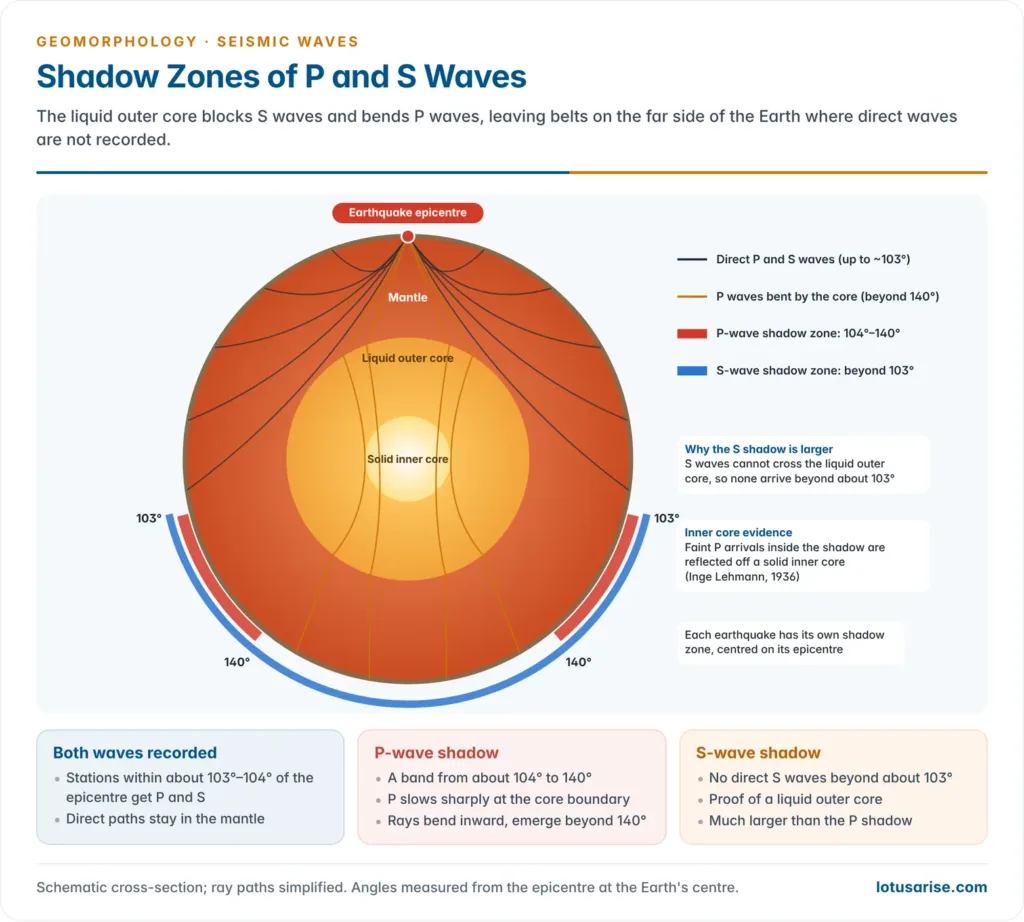

The emergence of Shadow Zone

Earthquake waves get recorded in seismographs located at far off locations.

However, there exist some specific areas where the waves are not reported. Such a zone is called the ‘shadow zone’.

The study of different events reveals that for each earthquake, there exists an altogether different shadow zone.

It was observed that seismographs located at any distance within 105 ° from the epicenter, recorded the arrival of both P and S-waves.

However, the seismographs located beyond 145 ° from epicenter, record the arrival of P-waves, but not that of S- waves.

Thus, a zone between ° 105 ° and 145 ° from epicenter was identified as the shadow zone for h both the types of waves. The entire zone beyond 105 ° does not receive S-waves.

The shadow zone of S-wave is much larger than that of the P-waves. The shadow zone of P-waves appears as a band around the earth between 105 ° and 145 ° away from the epicenter.

The shadow zone of S-waves is not only larger in extent but it is also a little over 40 percent of the earth’s surface.



How these properties of ‘P’ and ‘S’ waves help in determining the earth’s interior?

Reflection causes waves to rebound whereas refraction makes waves move in different directions.

The variations in the direction of waves are inferred with the help of their record on the seismograph.

Change in densities greatly varies the wave velocity.

By observing the changes in velocity, the density of the earth as a whole can be estimated.

By observing the changes in the direction of the waves (emergence of shadow zones), different layers can be identified.

Why S-waves cannot travel through liquids?

S-waves are shear waves, which move particles perpendicularly to their direction of propagation.

They can propagate through solid rocks because these rocks have enough shear strength.

The shear strength is one of the forces that hold the rock together, and prevent it from falling into pieces.

Liquids do not have the same shear strength: that is why, if you take a glass of water and suddenly remove the glass, the water will not keep its glass shape and will just flow away.

In fact, it is just a matter of rigidity: S-waves need a medium rigid enough to propagate. Hence, S-waves do not propagate through liquids.
